Bar Bending Schedule of Beams / Columns/ Slab as per IS-2502 & BSI -2005

Bar Bending Schedule or BBS can be defined as a detailed list of bent and straight bars required for a reinforced concrete structure. Bending Schedule  provides complete details of each bar to identify it on site including the Bar Mark, Bar Size, Bar Shape or shape code, Quantity of each bar, Length of the Bar and field notes if required. As per Indian standards, the bar bending schedule should be created as per the following sequence:

Location | Bar Mark | Bar Size | No. of Sets | No. per Set | Length | Shape

Standard Form of Reinforcement Bar Bending Schedule - Table 1 as per IS 2502 - 1963 , Reaffirmed 2018

Location
Mark Designation
Size And Type
Number of Sets
Number Per Set
Total Number
Length
Shape
(1) Column
(2) C4 4R 25N
(3) MS Round 25 mm
(4) 5
(5) 4
(6) 20
(7) 3000 mm
(8) Straight
bar bending schedule as per Indian standards
BBS Table IS 2502 - Click to Enlarge

Standard Form of Reinforcement Bar Bending Schedule - BSI 8666 2005

Member
Bar Mark
Type & Size
No. of Member
No. in Each
Total No.
Length mm
Shape Code
A mm
B mm
C mm
D mm
EIR mm
Rev. Letter
Column 18
7
H 25 mm
1
5
5
5625
26
4000
600
-
100
-
(A)
bsi bar bending schedule
BBS Table BS 8666 2005 - Click to Enlarge

Bend Plus Quick BBS Software
Speed Up Your Bar Bending schedule

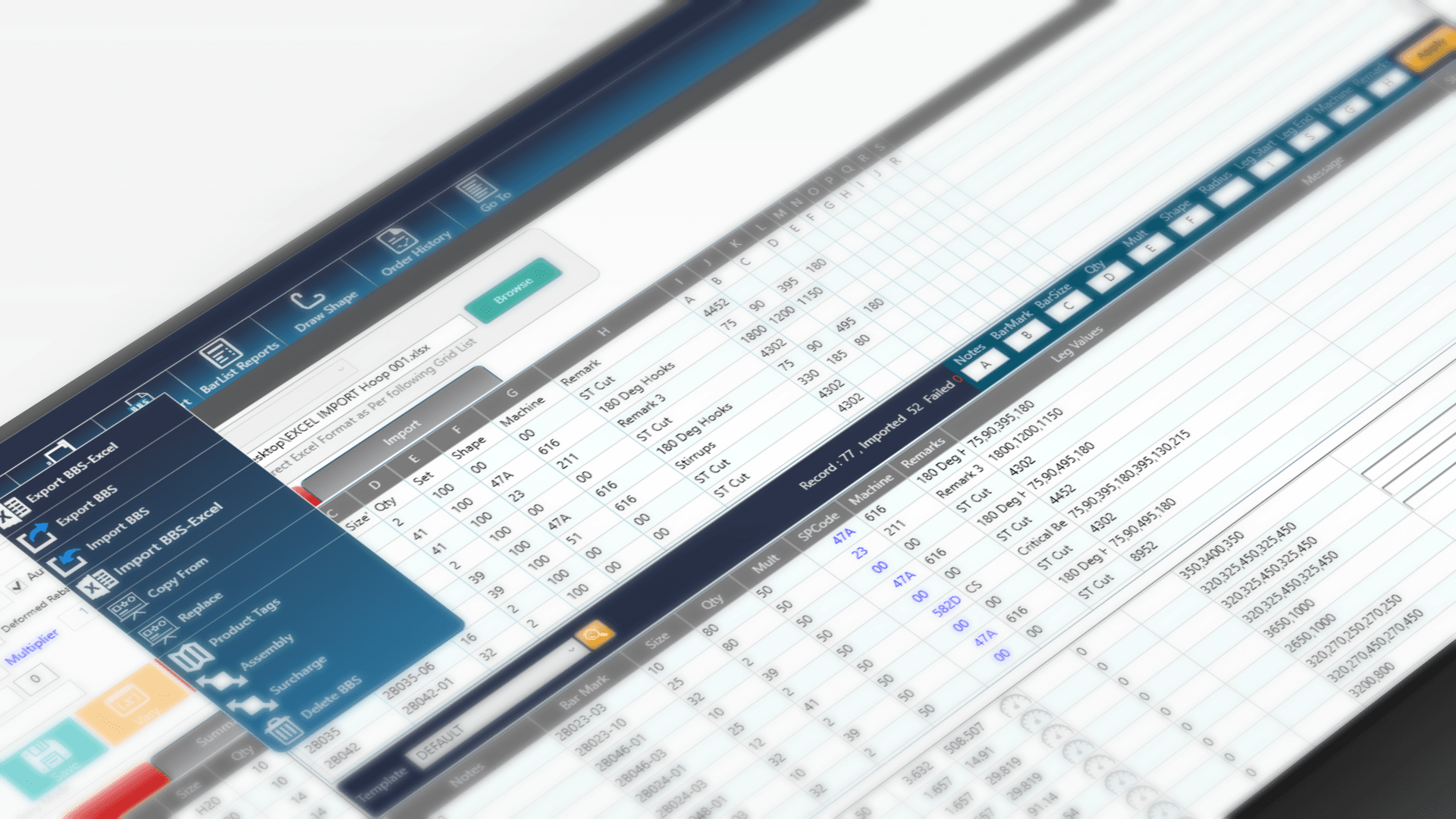

Enter Bar Bending Schedules quickly with ready shapes and auto calculations for cutting / theoretical lengths of bars. Additional features like copy paste helps you to duplicate line items or even copy a whole Bar Bending schedule within seconds. Bend Plus Software comes pre-loaded with Indian and British Standards for reinforcement steel.

You can buy it online through Razorpay secured payment gateway which also provides you various payment options to pay from credit/debit cards, bank transfer or even buy the software on EMI through ICICI bank ” Buy Now Pay Later” scheme.

Speed Up

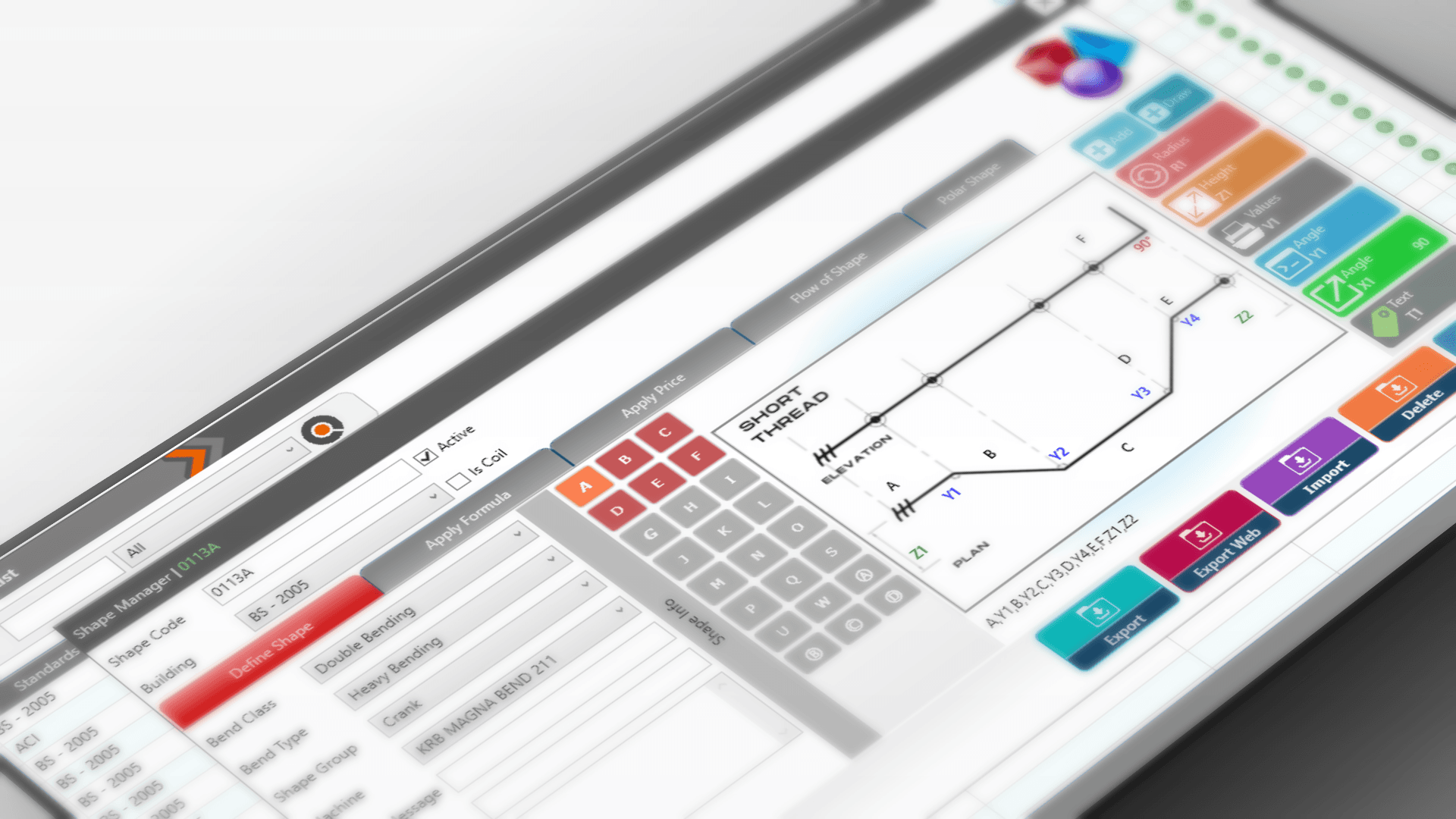

Pick a shape and start entering leg lengths. Auto bar mark further speeds up the BBS entry.

Auto Calculation

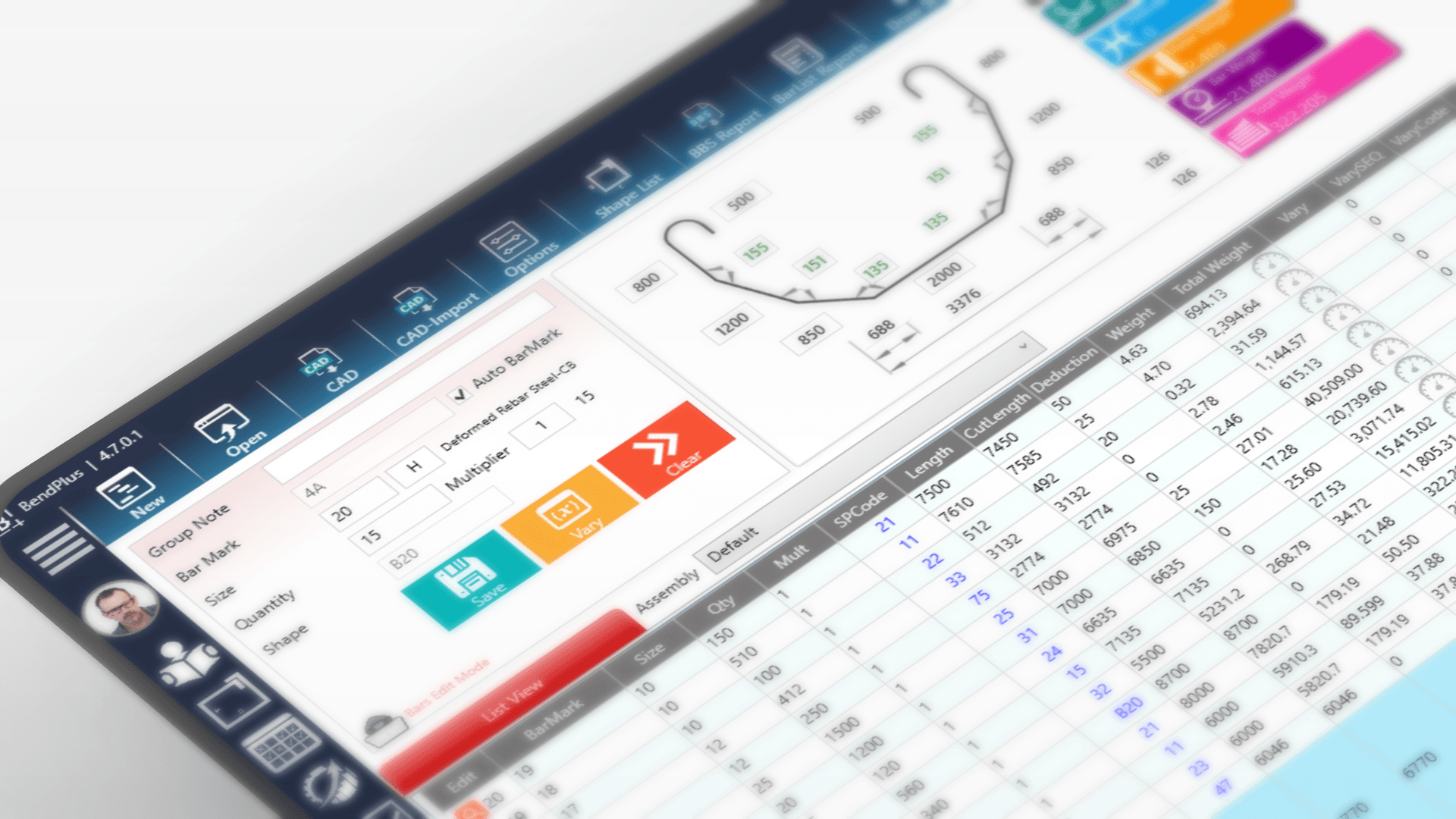

Bend Plus calculates the theoretical lengths, cut lengths, varied set lengths and provides you the results.

PDF / Excel Reports

Download the bar bending schedule with shapes or with leg lengths, using theoretical or cut lengths.

Customer Support

You facing any technical issue or just need simple guidance, Bend Plus support team takes care of all of it.

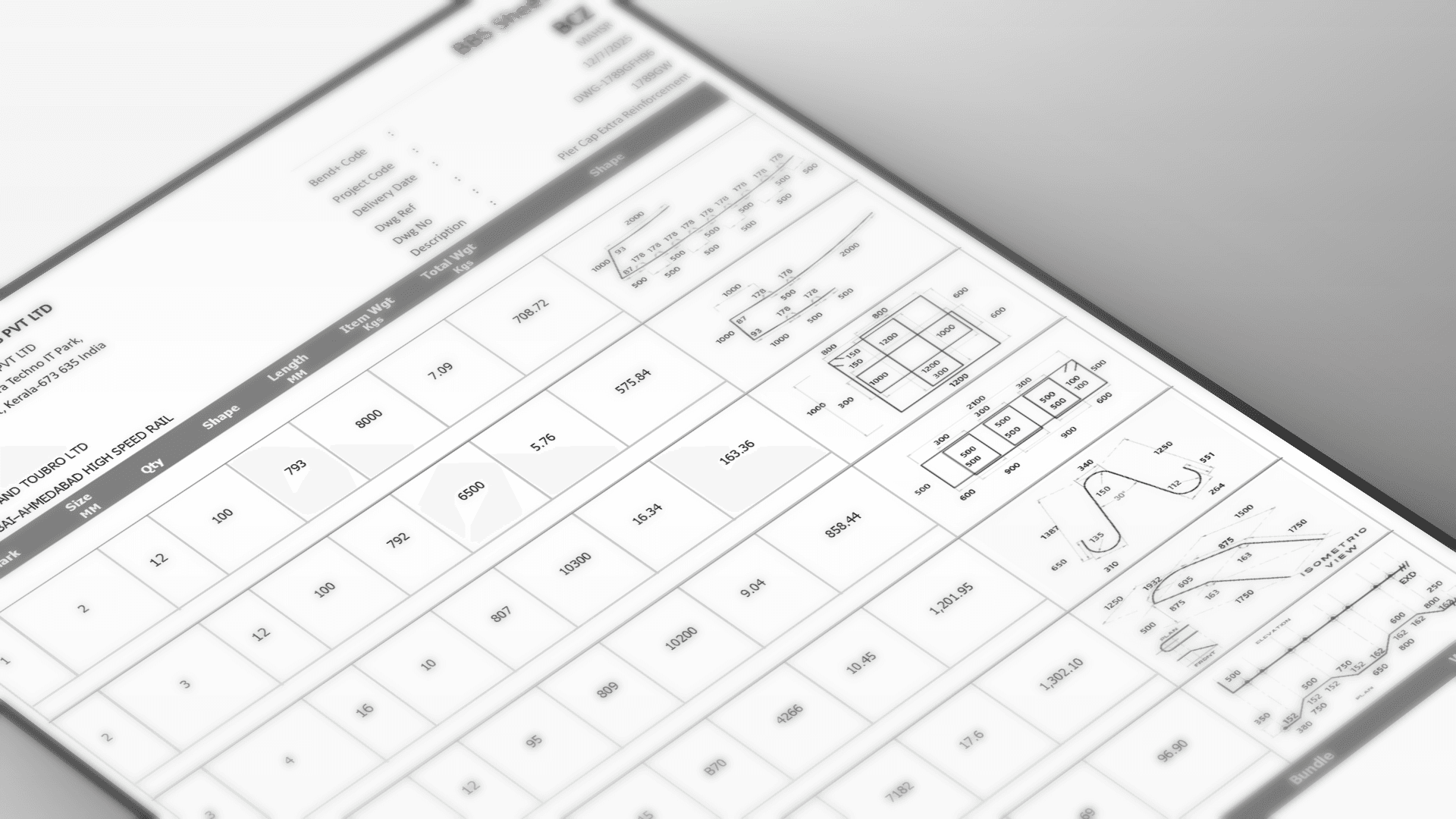

Bar Bending Schedule Sample Report Bend Plus

Sample Reports

Check out the bar bending schedule report samples here and feel free to contact us through our contact form if you are interested in a detailed demo before buying the software online.
